Subfloor Ventilation Melbourne

What Is Subfloor Ventilation?

Subfloor ventilation is a system that circulates fresh, dry air through the cavity beneath your floors while expelling the damp, stale air that accumulates there. It comes in two forms.

Passive ventilation uses perimeter vents set into the brickwork or piers to allow natural airflow. This approach works where there is genuine cross-ventilation across the subfloor and no structural obstructions blocking the air path.

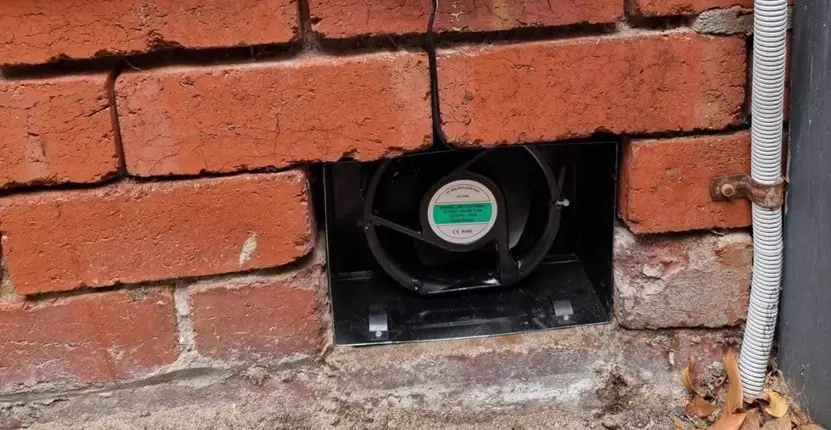

Fan-forced (mechanical) ventilation uses low-voltage or solar-powered extraction fans to actively pull damp air out of the cavity. This is the appropriate solution where passive vents are insufficient, where extensions or decking have blocked natural airflow paths, or where the subfloor is deep enough that passive movement cannot cover the whole space. Protech also installs high-flow Aleta vents to replace standard brickwork vents where the existing openings have become blocked or are too shallow to allow adequate air movement.

Signs Your Melbourne Home Needs Better Subfloor Ventilation

Subfloor moisture problems often go undetected for years because the damage starts where it cannot be seen. By the time visible symptoms appear inside the home, the structural timbers have usually been deteriorating for some time. Watch for these indicators.

• Musty or earthy smell inside the home: A persistent damp odour — particularly noticeable on cool mornings or after rain — points to moisture trapped below floor level.
• Condensation on windows and internal walls: When subfloor humidity migrates upward, it raises the moisture content of the air inside the home, producing condensation on cooler surfaces.
• Cupping, warping, or springy timber floors: Timber absorbs moisture unevenly. Cupping (edges higher than the centre) and a soft or bouncy underfoot feel are classic signs of prolonged exposure to high subfloor humidity.
• Mould near skirting boards or floor vents: Mould growth at floor level, especially along the perimeter walls, indicates that moist subfloor air is breaking through into the living space.
• Increased termite and timber-pest risk: Termites require moisture to survive. A damp subfloor dramatically increases the attractiveness of your property's timbers to termite colonies and to wood-boring beetles — any subfloor moisture problem should be considered a termite risk factor and treated as such.
• High indoor humidity in winter: If your home feels persistently damp during cooler months with no obvious cause, the subfloor is a primary suspect.

Subfloor Ventilation and Termite Prevention

Subterranean termites need three things to establish a colony inside a building: a food source, a way in, and moisture. A poorly ventilated subfloor supplies the last two at once. The damp soil and humid air hold the moisture termites depend on, and the untreated timber bearers and joists sitting directly above give them the food and the access. This is why our timber-pest technicians treat a wet subfloor as an active structural risk that warrants attention in its own right.

The link is recognised in the building standards. The Australian Standard for termite management, AS 3660, calls for adequate subfloor ventilation as part of the non-chemical measures that keep a property unattractive to termites, and it requires a minimum ground clearance so that timbers can be inspected and stay dry. A subfloor that meets the standard is far harder for a colony to colonise than one where the air sits still and the timbers stay damp.

Because Protech is a licensed timber-pest inspector as well as a ventilation installer, the recommendation you receive is grounded in a genuine inspection of the risk to the building. Where an inspection turns up an existing problem, we can move straight to a termite treatment or a full building and pest inspection, and improving the ventilation then becomes part of protecting the property for the long term. The same damp conditions also invite wood-boring beetles and the fungal decay that rots structural timber, so a drier subfloor addresses several timber threats together.

What the Building Standards Require

Subfloor ventilation is governed by the National Construction Code and the relevant Australian Standards, and understanding the requirements helps explain why so many older Melbourne homes fall short. The figures below are the benchmarks our technicians assess a subfloor against during an inspection.

• Ventilation opening area: The National Construction Code (Part 6.2 of the Housing Provisions) sets a minimum area of ventilation opening for each metre of external wall, scaled to the climate. In Melbourne's temperate zone the requirement works out to several thousand square millimetres of clear vent per lineal metre, and it can be halved where an impervious ground membrane is laid to cut off rising moisture at the source.
• Ground clearance: The Code calls for a minimum clearance between the ground and the underside of the floor. Where the subfloor must be inspectable for termites, that clearance rises to 400 mm, easing back toward 150 mm within two metres of the external walls on sloping sites. Homes built tight to the ground are among the most difficult to ventilate naturally.
• Vent placement: Openings are meant to be spaced evenly around the perimeter and set no more than 600 mm in from each corner, so that air genuinely crosses the whole cavity rather than short-circuiting near one wall.
• Damp sites: Where a site is prone to standing water or excessive dampness, the Code requires the ventilation to be increased by around half again, a sealed ground membrane, or durable timber — often a combination of all three.
• Termite management (AS 3660): The termite standard reinforces the same point from the pest angle, requiring ventilation to be maintained and upgraded so that non-chemical termite protection can work as intended.

Many Melbourne homes were built before these provisions applied, or have since had their original vents blocked by garden beds, paving, extensions, or decking. Where the existing openings no longer meet the mark, a fan-forced system makes up the shortfall that passive vents alone cannot.

Benefits of a Properly Ventilated Subfloor

• Drier subfloor and protected structural timbers: Keeping moisture below the threshold that promotes fungal decay preserves your bearers, joists, and flooring boards. This is significantly cheaper than repairing or replacing structural timbers after the fact.
• Healthier indoor air: Subfloor mould and mildew release spores that migrate upward into the living areas. Occupants with asthma or respiratory sensitivities are particularly affected. Adequate ventilation cuts off this source at the origin.
• Reduced termite and timber-pest risk: Termites need moisture to establish and maintain their colonies. A dry subfloor is a far less hospitable environment for them, and it reduces the conditions that encourage wood borers as well. Subfloor ventilation works as a genuine structural termite-prevention measure, well beyond the comfort it brings underfoot.
• Stable timber floors: Timber that maintains a consistent moisture content does not cup, warp, or develop gaps between boards. Floors stay flat and feel firm underfoot.
• Reduced condensation and humidity indoors: Lower subfloor moisture means less water vapour migrating into the living space, which reduces condensation on walls and windows during winter.
• Low maintenance, long service life: Fan-forced systems — particularly solar-powered units — have few moving parts, operate without ongoing energy costs, and are designed for decades of service.

What Subfloor Ventilation Costs

Every subfloor is different, so an honest quote can only follow an inspection. The final figure depends on the size of the cavity, how easy it is to access, whether the existing perimeter vents can be cleared and reused, and the type of system the subfloor actually needs. That said, most homeowners want a sense of the range before they book, so here is how the work tends to break down.

• Clearing or replacing blocked vents: the least expensive option, appropriate where the subfloor has enough openings but they have been obstructed or have silted up.
• Adding high-flow passive vents: replacing standard terracotta vents with high-flow units such as Aleta, which move several times the air of the vent they replace, where natural cross-flow is the missing piece.
• A fan-forced extraction system: the solution for cavities where passive airflow cannot cope, priced according to the number and type of fans the volume calculation calls for.

The running cost of a modern system is genuinely small. The low-voltage and solar Envirofan units we install draw a fraction of the power of a mains system and are typically set to run only through the drier daylight hours, so the ongoing electricity cost lands at a few dollars a year per fan. A fixed-price quote is provided after the inspection, and there are no surprises once the work begins. Call 03 9449 4244 to arrange a free assessment.

The Protech Process — From Inspection to Installation

1. Moisture testing and subfloor assessment

The first visit is a full inspection of the crawl space. Our technicians measure moisture levels in the subfloor before any work begins, assess the condition of structural timbers, identify any existing vent obstructions or airflow blockages, and determine whether passive vents, fan-forced extraction, or high-flow vent replacements are the appropriate solution for your property.

2. Measuring the subfloor and sizing the system

A ventilation system that is under-sized for the space will not bring moisture under control. We calculate the cubic meterage of your subfloor (width × length × height) and divide by the fan's rated output to confirm that the selected system will achieve the target of at least three to five air changes per hour for your cavity. Where the subfloor has limited or no access, fans are installed through external wall openings so an access hatch is not needed.

3. Choosing and installing the right fans

Protech installs Envirofan units — Australian-designed and manufactured fans with over three decades of use in subfloor applications. Fan selection is based on the access configuration and the volume of air to be moved — not a one-size preference:

• Quad-fan system: 275 × 215 mm external footprint, terracotta-vent sizing, 27 dB, solar or 12V — the multi-fan unit for larger subfloors.
• Dual-fan unit: brick-sized, 27 dB, solar or 12V, extracting around 2,750 litres of damp air per minute.
• Roof fan system: for properties where the roof space also needs attention, moving up to 7,000 litres of air per minute. Controlled by a thermostat, so there is no heat loss during winter, and finished in a choice of roof colours — Manor Red, Headland, Shale Gray, Woodland Gray, Windspray, Pale Eucalypt, Cottage Green, Wilderness, Deep Ocean, Silver, Night Sky and Mission Brown.

Fans are mounted on a 20 mm rubber base to isolate vibration, and positioned to ensure even air distribution across the full subfloor.

4. Commissioning and moisture verification

Once installed, fans are programmed via their built-in hygrometer or timer to operate at the required humidity threshold. Our technicians take moisture readings after installation to verify the system is performing correctly before they leave.

5. Follow-up inspection

We return approximately one month after installation to conduct a post-installation moisture check, inspect the system, and make any adjustments needed. The aim is to confirm that the subfloor has stabilised and that the ventilation is achieving the intended result across all areas of the crawl space.
